DIY自制低成本LoRa网关(英文:A DIY low-cost LoRa gateway)

1. Introduction

This page describes our low-cost LoRa gateway based on a Raspberry PI. The gateway can receive from any LoRa device and is designed to be fully customizable for a targeted application with post-processing features based on high-level languages such as python. Typical post-processing features are to push the received data on various IoT/cloud platforms. Currently, we provide example for DropBoxTM, FirebaseTM, ThingSpeakTM, SensorCloudTM, GroveStreamsTM, FIWARE.

The work presented here is part of the EU H2020 WAZIUP project (grant agreement number 687607, 2016-2019) which objective is to develop low-cost IoT solutions for deployment in sub-saharian African countries. Various applications are considered: water quality monitoring, cattle rustling, logistics and goods transportation. More details will come soon, but right now you can get the presentation of the developped gateway in .pdf.

There are many advanced and well-integrated LoRa gateways capable of simultaneous reception on several channels and implementing the LoRaWAN specification (see slides). These gateways are based on the SX1301 baseband concentrator. Our LoRa gateway could be qualified as “single connection” as it uses the SX1272, much like an end-device would do. However, in order to increase LoRa transmission robutsness we improve the LoRa transmission with CSMA features (or so-called Listen Before Talk) and add Quality of Service guarantees with regards to radio time limitations. This solution keeps the cost of the gateway low and can satisfy small to medium size deployment scenario for ad-hoc application cases in various private usages, farming, agriculture, infrastructure surveillance, application-specific telemetry systems,… Note that more than 1 gateway can be deployed to serve several channel settings. However, it is probably not adapted, in the current state of development, to large-scale deployment with a large number of end customers from various different organizations with their own and different requirements regarding data management, confidentiality and security.

Download: github (drop me a mail if you use our development so that we could advertise it)

  1. gw_full_latest folder: the latest version of the gateway software
    1. the modified SX1272 library (initial version comes from Libelium) with enhanced features: support of SX1276, LBT & CSMA-like, …
    2. the arduPi library for RPI1 and RPI2
    3. the lora_gateway.cpp code (which compile on both RPI and Arduino)
    4. the makefile
    5. the post-processing python scripts: cloud management, encryption, etc.
  2. Arduino folder
    1. the modified SX1272 library (initial version comes from Libelium) with enhanced features: support of SX1276, LBT & CSMA-like, …
    2. the lora_gateway.ino code (which compile on both RPI and Arduino)
    3. an interactive end-device sketch
    4. various templates for most of Arduino boards (Uno, Mega, Due, Pro Mini, Teensy, etc.). Work out-of-the box with the gateway.
  3. a for some installation/compilation instructions
  4. our FAQ, explaining our LoRa framework, and especially why we are not LoRaWAN compatible


Download: full SD card zipped image for the Raspberry gateway (based on Raspbian Jessie)

  1. Supports Raspberry 1B+, RPI2 and RPI3.
  2. Get the zipped image, unzip it, install it on an 8GB SD card, see this tutorial from
  3. Plug the SD card into your Raspberry
  4. Connect a radio module (see below)
  5. Power-on the Raspberry
  6. The LoRa gateway starts automatically when RPI is powered on
  7. With an RPI3, the Raspberry will automatically act as a WiFi access point. For RPI 1&2, see instructions on github
  8. Update to the latest gateway version:
  9. By default, incoming data are uploaded to our LoRa ThingSpeak test channel
  10. Works out-of-the-box with the Arduino_LoRa_Simple_temp sketch

2. Hardware components

The gateway is based on a Raspberry PI. RPI 1B+/2B/3B can be used. The LoRa modules comes from (a) Libelium LoRa radio module, (b) HopeRF RFM92W/HopeRF RFM95W (or RFM96W for 433MHz), (c) Modtronix inAir9/inAir9B (or inAir4 for 433MHz), (d) NiceRF LoRa1276. Libelium LoRa and RFM92W use the Semtech SX1272 chip while RFM95W, inAir9/9B and NiceRF LoRa1276 use the SX1276 which is actually more versatile.

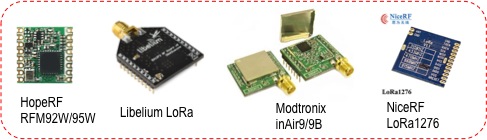

Figure: supported (tested) radio modules

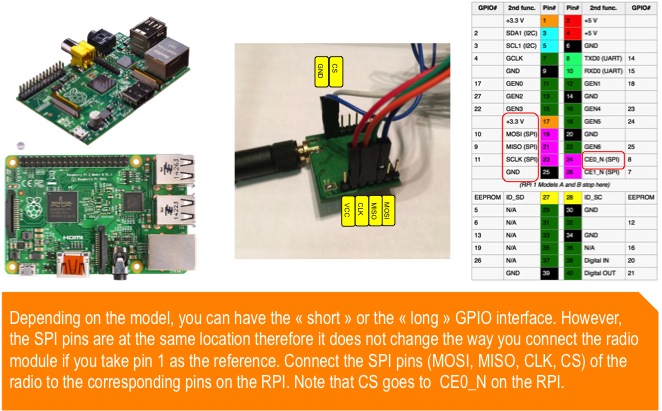

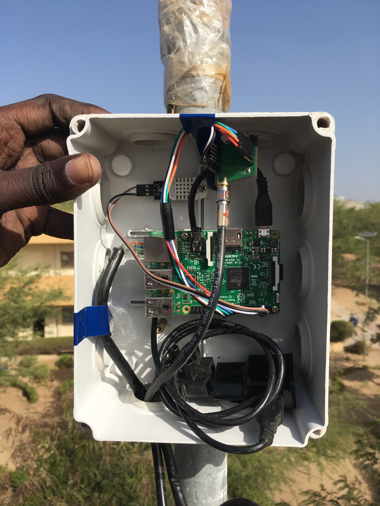

Figure: Left: Hardware components with a Modtronix inAir9 radio module. Right: RPI GPIO header for RPI 1B (short) and RPI 2B/3B (long)

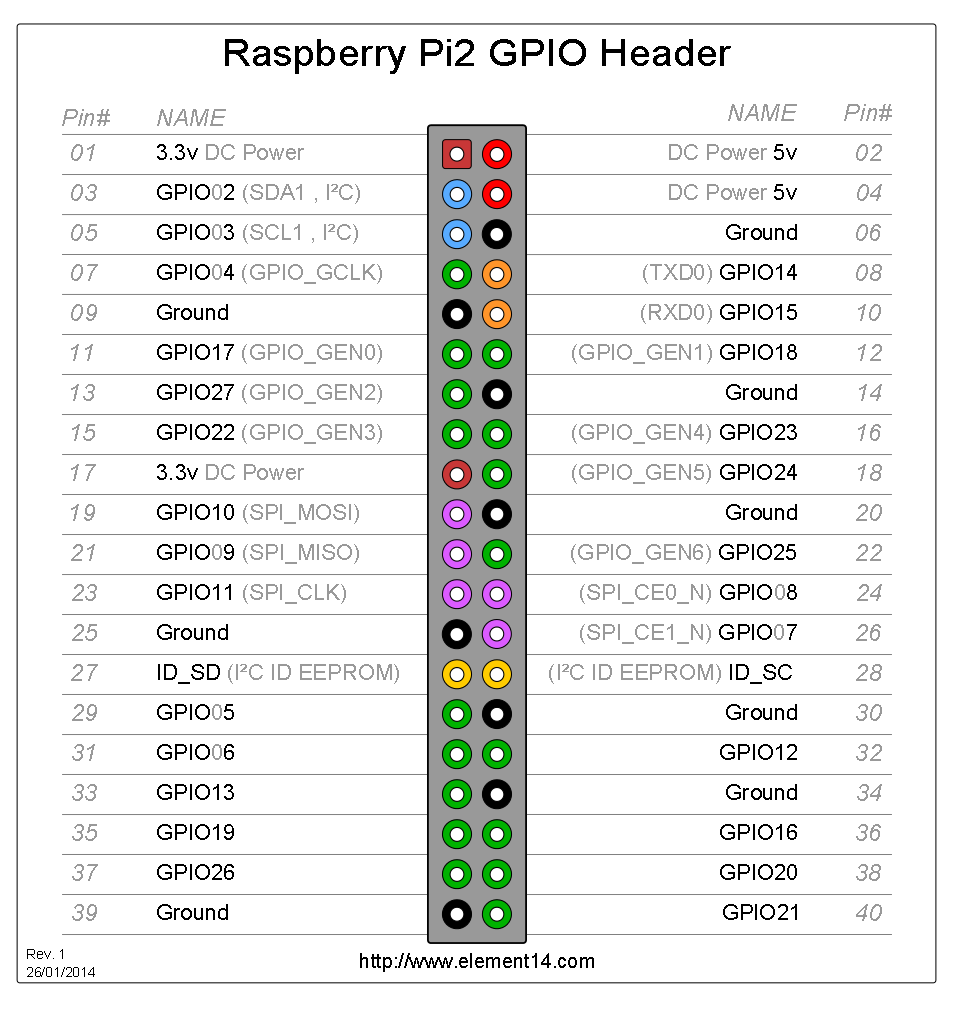

Figure:GPIO header of the RPI

Using Libelium Lora

For the Libelium LoRa module, we directly connected the LoRa module without the connection bridge developed by Libelium to save the extra cost of the connection bridge, by just connecting the required SPI pins (MISO, MOSI, SPI_CLK and SPI_nSSEL), VCC and GND to the corresponding pins on the RPI (CE0 on the RPI for SPI_nSSEL and 3v3 for VCC). Pin out diagrams for the LoRa module in XBee format is shown below. The LoRa module from Libelium is however quite expensive: around 45€.

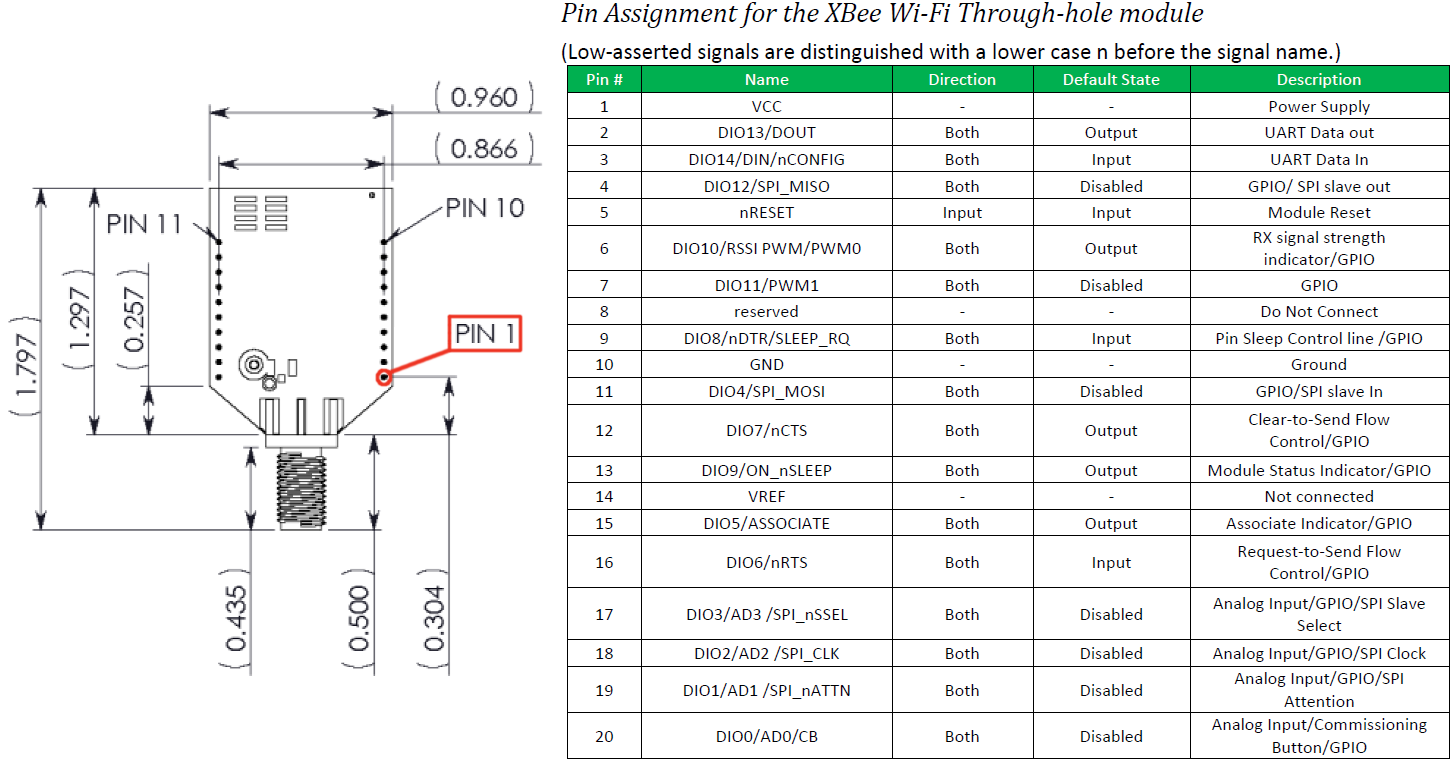

Figure: XBee pin-out diagram for the Libelium LoRa module

We solder the wires to the pin as shown in the figure below. If the RPI is put in a case for outdoor usage, the radio module could just be fixed with the antenna or an SMA extension cable could be used. At the Raspberry side, you can simply plug the right cable end to the corresponding GPIO pin.

Figure: using two 10-pin 2mm female socket to connect the LoRa module that has an XBee format. Right: the module is seen from the back side

Figure: connect the LoRa radio module to the RPI GPIO header

Using HopeRF RFM92W/RFM95W

Now, the HopeRF RFM92W (RFM95W) module is shown below. An adapter is need to have the break-out pins (the RFM92W module is quite small) and most importantly the antenna plug (which is in Female SMA). Note that the latest news from HopeRF indicated that the RFM92W is discontinued because the RFM95W is better. So you probably will have an RFM95W if you buy them now.

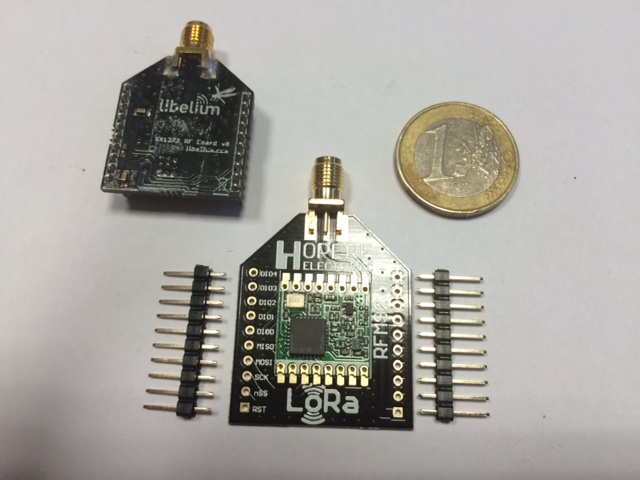

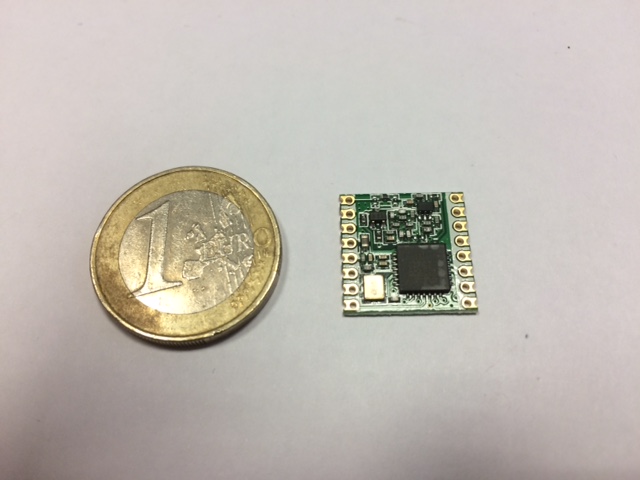

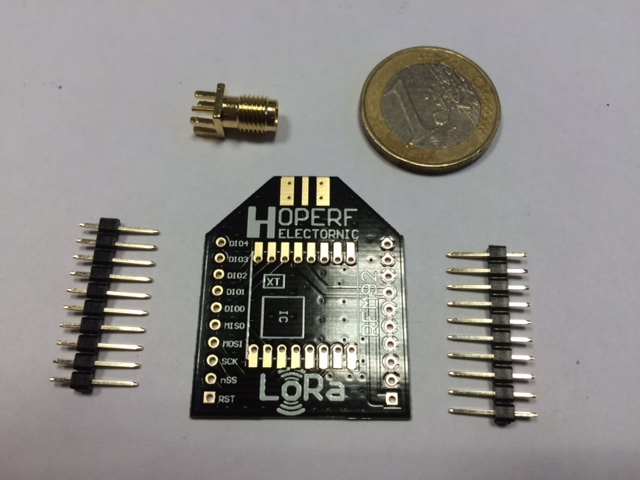

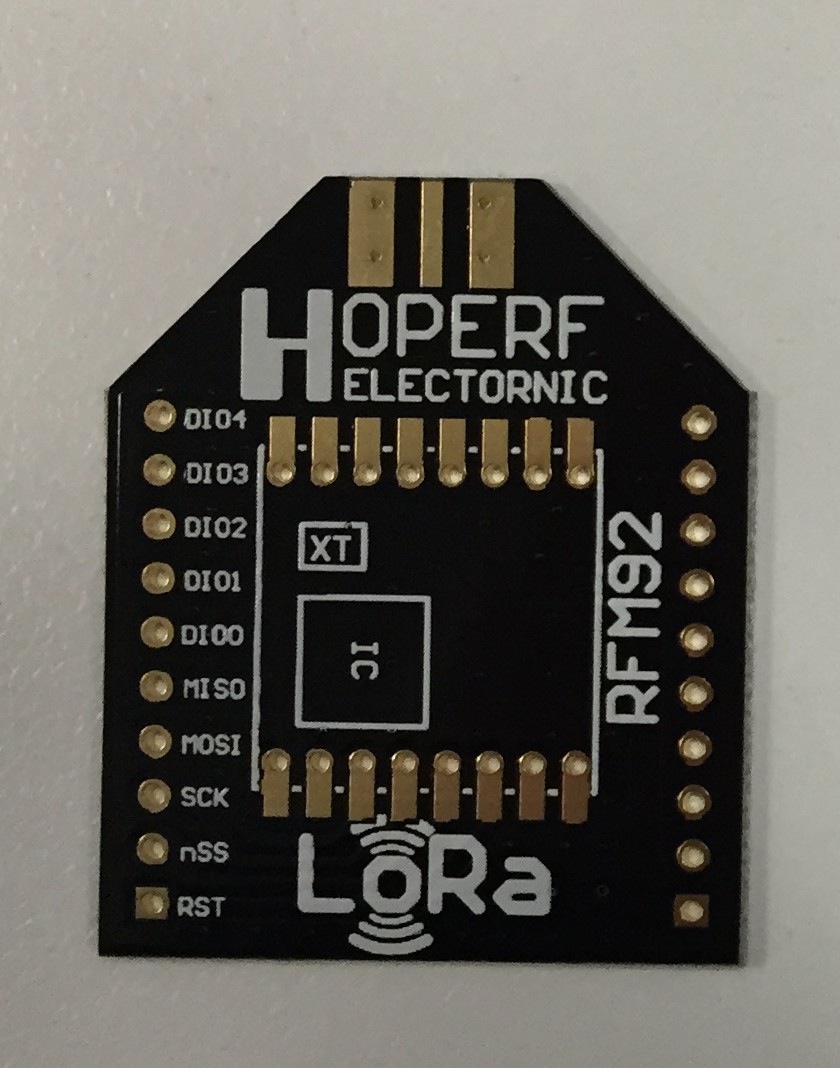

Figure: the RFM92W module (left), the RFM92W adapter (middle), the RFM92W and the adapter before soldering, comparison with the Libelium LoRa for size (right)

After some delicate soldering, we have the RFM92W module ready to be plugged on our Raspberry like previously: just connect the right cable to the GPIO header or use an additional header for fast insertion/removal of the radio module.

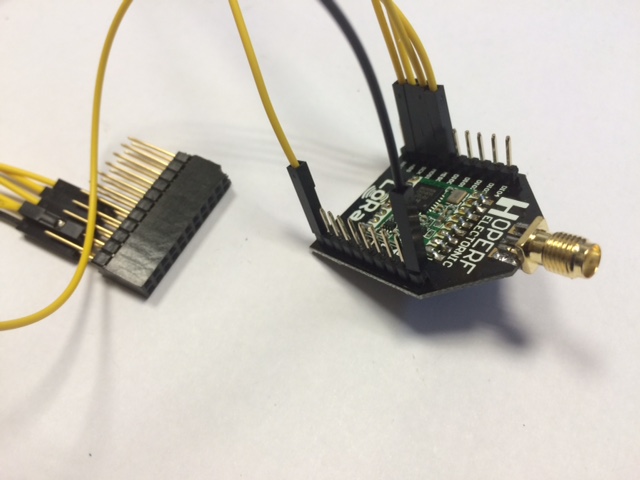

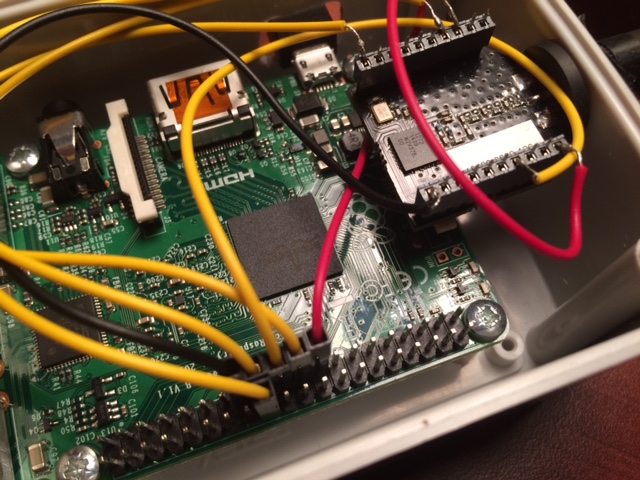

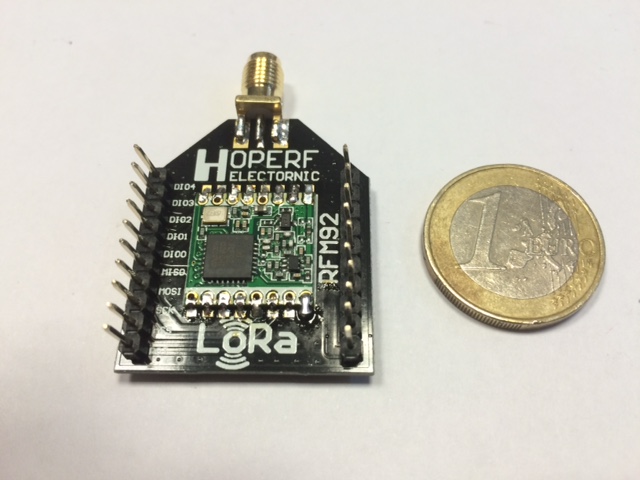

Figure: the RFM92W and the adapter, after soldering (left), ready to be plugged on the Raspberry (middle), the adapter pin-out (right)

The RFM92W (or RFM95W) with the adapter costs less than half of the Libelium LoRa (around 15€) which makes it quite attractive for our low-cost LoRa gateway. As both use the native SPI communication with the SX1272, the Libelium library can also drive the RFM92W, as explained in next section. See our low-cost gateway based on the RFM92W/95W at the end of the page.

Using Modtronix inAir9

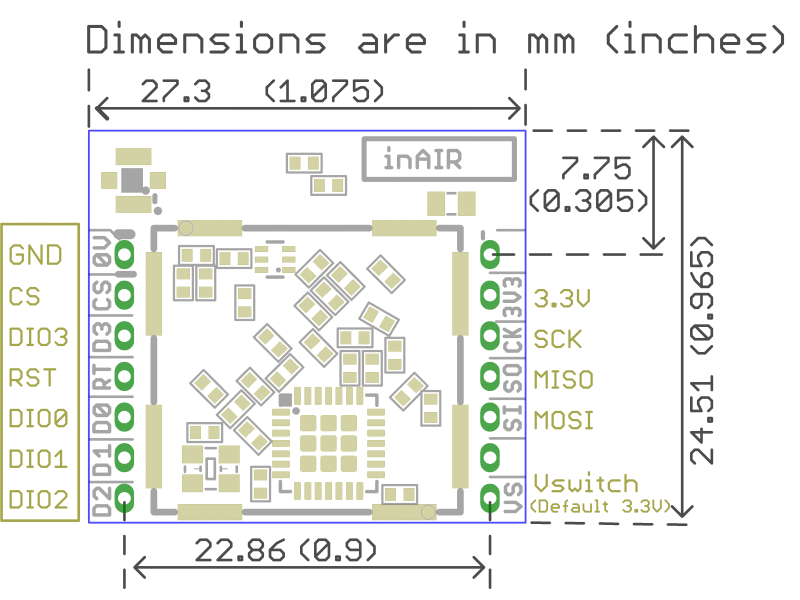

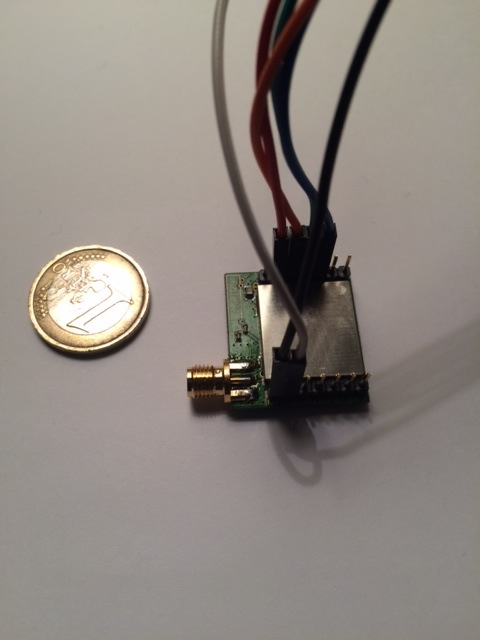

We also tested with the Modtronix inAir9 which is based on the SX1276. This module has 2 advantages: it costs less than half of the Libelium LoRa (around 15€) and can come with the header pins already soldered! The left figure shows the radio module and the right figure shows the pin out.


To connect the inAir to the Raspberry, proceed as previously: just connect the right cable to the GPIO header or use an additional header for fast insertion/removal of the radio module. Our first tests show that the inAir is reliable. Given its low cost and readiness (the RFM92W/RFM95W need some soldering) it is definitely a good choice. Note that there is an inAir9B with +20dBm transmit power but regulation is quite strict on such transmit power usage.

Using the LoRa GPS Hat

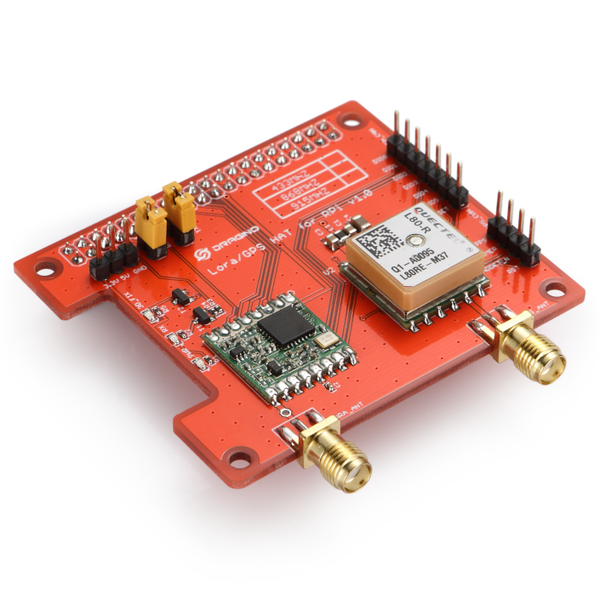

The LoRa GPS Hat from Dragino is also a nice solution based on an RFM95W. Look at the Dragino wiki that explain how to use their shield with our library (see example 4).

Important notice for the SX1272 library

Note that the original Libelium library to drive the LoRa module does not use DIO pins as many other libraries do, so there is no need to connect these pins. You can use other development codes using DIO pins by connecting the required pins that are mostly configured as follows DIO0 (RXdone or TX done), DIO1 (RX timeout) and DIO5 (ready). Of company, you have to check first. Some may also use the RST pin to reset the module.

3. Main architecture

Initially, the gateway was implemented on an Arduino (MEGA/Due) for test purpose and for having a “direct” transparent radio bridge. We enhanced the gateway code but maintained compatibility with Arduino therefore the main features are available on both platforms. On the RPI, we use the arduPI layer provided by Libelium to run both the SX1272 library and the gateway program. The original SX1272 library has been significantly improved to support also the SX1276, to add CSMA-like capability to increase LoRa efficiency and implement the possibility to dynamically ask for an ACK from the receiver side. This library basically drives the SX1272 through the SPI interface (it then works with no modifications with the HopeRF RFM92W and has some modifications for the SX1276). The most important point to mention is that the original library adds 5 bytes for internal usage as shown is the following figure, taken from the Libelium documentation.

dst addr (1 byte) src addr (1 byte) sequence number (1 byte) payload length (1 bytes) payload data (variable length) retry counter (1 byte)

The dst addr allows the library to filter packet at the receiver by comparing with the end-device addr that should be set at startup. Therefore, the current maximum number of nodes is 254 (1 is usually used for the gateway and 0 is usually used to indicate broadcast).

Our SX1272/76 modified library uses a modified header where both the packet length and retry field are removed (packet length will be determined at receiver side). A packet type field has been added to ease the decoding process.

dst addr (1 byte) packet type (1 byte) src addr (1 byte) sequence number (1 byte) payload data (variable length)

The library is simple enough for you to modify it according to your need: more address space, longer sequence number, network/app/device key,…

The packet type structure is as follows, for the moment Ptype = 1 (B0001) for a DATA packet and Ptype = 2 (B0010) for an ACK packet:

Ptype (4 bits) ack_requested flag (1 bit) data_encrypted flag (1 bit) with_appkey flag (1 bit) is_binary flag (1 bit)

Now, the philosophy of our proposed gateway is to keep the gateway code very simple while having advanced post-processing features implemented by end-user with high-level languages such as python. We provide a script with several cloud features to demonstrate our approach and to serve as a starting point for your own development needs.

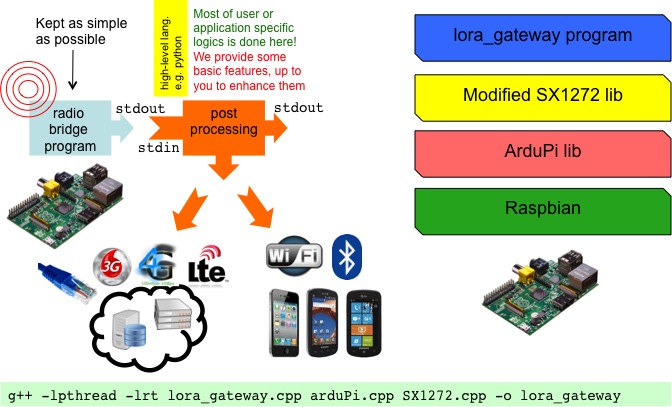

Figure: Main architecture of the gateway and post-processing feature

Basically, the gateway prints on UNIX stdout everything that it receives from the end-devices. When receving a packet, the source address, the sequence number, the payload length, the SNR and the RSSI are printed.

The gateway LoRa parameters can be configured remotely with ASCII control sequences. We use prefix ‘/@’ to indicate a remote control packet. The command should be terminated with an ‘#’. Available commands are:

/@M1#: set LoRa mode 1
/@C12#: use channel 12 (868MHz)
/@PL/H/M/x/X#: set power to Low, High, Max, extreme (PA_BOOST), eXtreme (+20dBm) if available
/@A9#: set node addr to 9

Before the gateway accepts to be configured remotely, the ‘/@Upin_number#’ command must be issued. For instance, if the pin number is 1234 then to unlock the gateway, command ‘/@U1234#’ should be sent to the gateway. To lock again, just issue the same command. There is a limited number of trials before the gateway is completely blocked for remote configuration. You can change all these settings by simply recompiling the gateway program.

The Libelium SX1272 library defines 10 so-called LoRa mode that use various combinations of LoRa parameters: bandwidth, spreading factor, coding rate. Figure below shows these combinations and the time on air associated to them. The payload value includes the 5-bytes header.

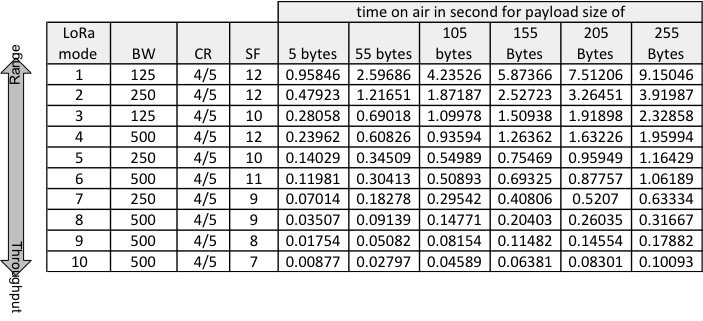

Figure: Defined Libelium LoRa mode and their time on air

4. Simple gateway

After compiling the lora_gateway program, the most simple way to start the gateway is in standalone mode as shown below. The default gateway configuration is to use Libelium LoRa mode 4 (865.2MHz with BW=500kHz, SF=12, CR=4/5) at maximum transmission power (not +20dBm). The preamble length is 8 and the address is 1.

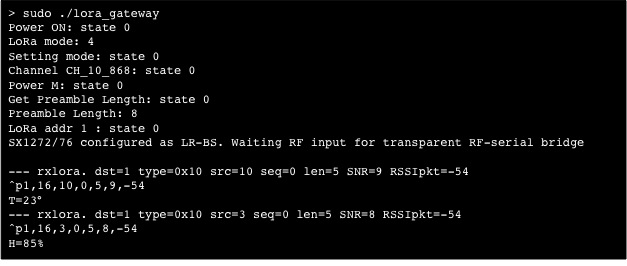

Figure: Gateway running in standalone mode

In the example above, let’s assume that sensor 10 sends “T=23°”. Then the gateway will print:

— rxlora. dst=1 type=0x10 src=10 seq=0 len=5 SNR=5 RSSIpkt=-54

The part in red is what the end-device has actually sent. Lines “^p1,16,10,0,5,5,-54”, “^r500,5,12” and “^t2016-02-17T19:56:17.121” summarizes information for the received packet in a condensed manner that can be further exploited by the post-processing stage as it will be shown later on.  Note that the packet type is expressed in decimal in the ^p string.

The gateway can actually be launched on another Libelium mode by using the –mode option in the command line:

> sudo ./lora_gateway –mode 2

5. Adding post-processing

Our approach is to enable information passing between the gateway program (basically running in a transparent manner) and post-processing operation implemented by end-users in a high-level language. We provide a simple python script to demonstrate how advanced and complex post-processing tasks can be realized. Note how the gateway is launched now:

> sudo ./lora_gateway | python ./

The first example for post-processing is for instance getting and exploiting information on the last received packet.

Getting information for the last received packet

As indicated previously, the gateway prints “^p1,16,10,0,5,5,-54” to indicate that the destination is 1 (the gateway), the packet type is 0x10 (DATA packet), source is 10, the sequence number if 0, the data length is 5, the SNR is 5 and the RSSI is -54. Our provided post-processing program looks for special, well-defined prefix sequences. The special sequence ‘^p’ gives information on the last received packet. In the figure below, “^p1,16,10,0,5,5,-54” is issue by the gateway program, but intercepted by therefore it is not shown. Instead, displays:

rcv ctrl pkt info (^p): 1,16,10,0,5,5,-54
(dst=1 type=0x10 src=10 seq=0 len=5 SNR=5 RSSI=-54)

“^r500,5,12” means that the LoRa modulation uses bandwidth of 500kHz, coding rate of 4/5 and spreading factor of 12. “^t2016-02-17T19:56:17.121” indicated the received packet’s timestamp in ISO format.

All lines that are not prefixed by some special sequence are displayed unchanged by

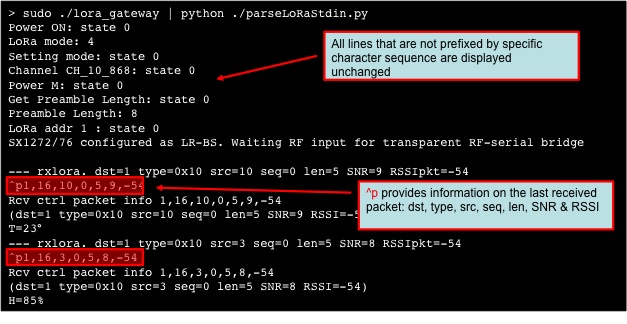

Figure: Getting information for last received packet

Prefix for data management

Special prefix sequences can be inserted by the end-devices to be intercepted and acted upon by We demonstrate the flexibility of this approach by intercepting and interpreting some prefixes: ‘^$’, ‘\$’, ‘\!’

We chose the following logic: ‘^’ will indicate a prefix from the lower level gateway program and ‘\’ indicates a prefix inserted by end-devices. Then we chose ‘$’ for file logging service and ‘!’ for pushing to a cloud. You can add your own.

Example: Logging to file

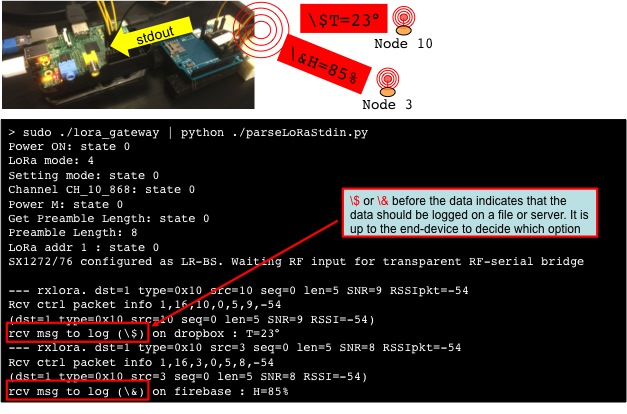

In the following figure, we show sensor 10 sending “\$T=23°” that indicates redirection to a log file. The prefix ‘\$’ makes to write in “telemetry.log” file. By default this file is in the Dropbox/LoRa-test folder that can then be shared under Dropbox. In order to have Dropbox support on the RPI, check this page. There is also an Dropbox-uploader solution but it has not been tested. With Dropbox, you can have access to these files accross the Internet and on all your Dropbox devices, and of company your smartphone.

Figure: Using prefix from end-devices will display the following information:

— rxlora. dst=1 type=0x10 src=10 seq=0 len=5 SNR=5 RSSIpkt=-54
rcv ctrl pkt info (^p): 1,16,10,0,5,5,-54
(dst=1 type=0x10 src=10 seq=0 len=5 SNR=5 RSSI=-54)
rcv msg to log (\$) in log file: T=23°

Here is a sample of the “telemetry.log” file when using ‘\$’ prefix. Note that you can log any information because we currently only use string format when sending from an end-device.

(src=10 seq=0 len=5 SNR=9 RSSI=-54) 2015-11-04T22:43:04.091803> T=23°
(src=3 seq=0 len=5 SNR=8 RSSI=-54) 2015-11-04T22:43:04.091947> H=85%
(src=10 seq=1 len=62 SNR=9 RSSI=-54) 2015-11-18T13:34:48.351417> indicates that line should be logged in a file (telemetry.log)
(src=10 seq=2 len=5 SNR=9 RSSI=-54) 2015-11-18T13:34:51.354996> T=23°
(src=10 seq=3 len=62 SNR=9 RSSI=-54) 2015-11-18T13:35:17.809479> indicates that line should be logged in a file (telemetry.log)

The gateway program uses ‘^$’ to identify important messages. For instance, information at gateway startup is prefixed by ‘^$’ so that post-processing can handle these information accordingly. If you need to have additional information from the gateway to be prefixed by ‘^$’ you have to modify the gateway program and recompile it.

Uploading to cloud platforms

The prefix ‘\!’ makes to upload the data to cloud platform by calling all enabled cloud platforms. See the README file on cloud management.

Example with Firebase

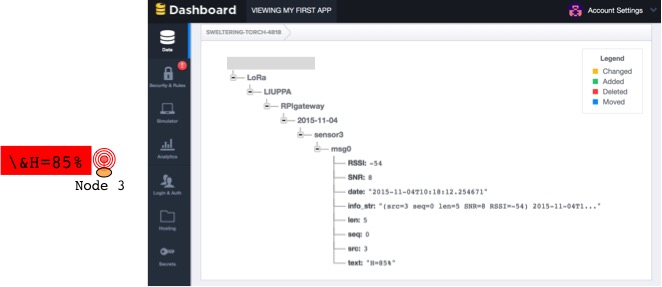

In the following figure, we show how the ‘\&’ prefix triggers a POST on a Firebase database. uses the python-firebase package. Check this page for more information. The result comes from the ‘\&H=85%’ message that indicates redirection to a Firebase database.

Figure: posting on Firebase

Note: you must have a Firebase account with a valid Firebase database identifier.

Example with ThingSpeak

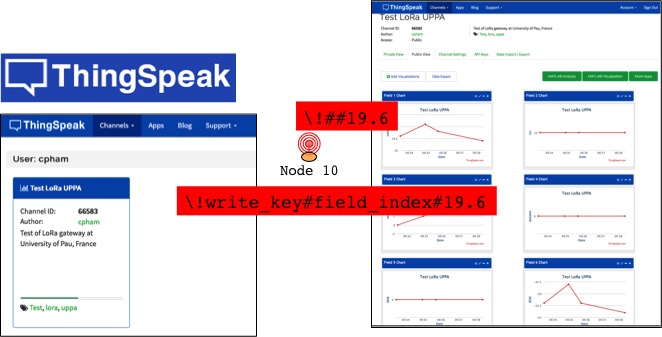

In the following figure, we show how the ‘\!’ prefix triggers a POST on a ThingSpeak channel.

Figure: Posting on ThingSpeak will display the following information:

— rxlora. dst=1 type=0x10 src=3 seq=13 len=10 SNR=4 RSSIpkt=-60
rcv ctrl pkt info (^p): 1,16,3,13,10,4,-60
(dst=1 type=0x10 src=3 seq=13 len=10 SNR=4 RSSI=-60)
rcv msg to log (\!) on ThingSpeak ( default , 1 ): 19.6
ThingSpeak: will issue curl cmd
curl -s -k -X POST –data field1=19.6&field5=13
ThingSpeak: returned code from server is 1232

Note: you need to have a ThingSpeak channel with a valid write key. This write key will replace the part in red shown above.  The end-device can actually send ‘\!write_key#field_index#20.1. write_key is your ThingSpeak channel write key. Then field_index is a number between 1 and 8 for the corresponding field in the channel. If you omit both the write_key and the field_index (sending ‘\!##20.1’ for instance) then the default write_key will be used and the field index will be 1. For test purposes, we provide a test channel (default channel) whose write key is SGSH52UGPVAUYG3S. You can therefore test right away your gateway.

See our ThingSpeak channel for 2 temperature LoRa devices (sensor3 and sensor10) sending data every 10 minutes to the gateway. We will keep it running to test the gateway. See temperature from one of the sensor below.

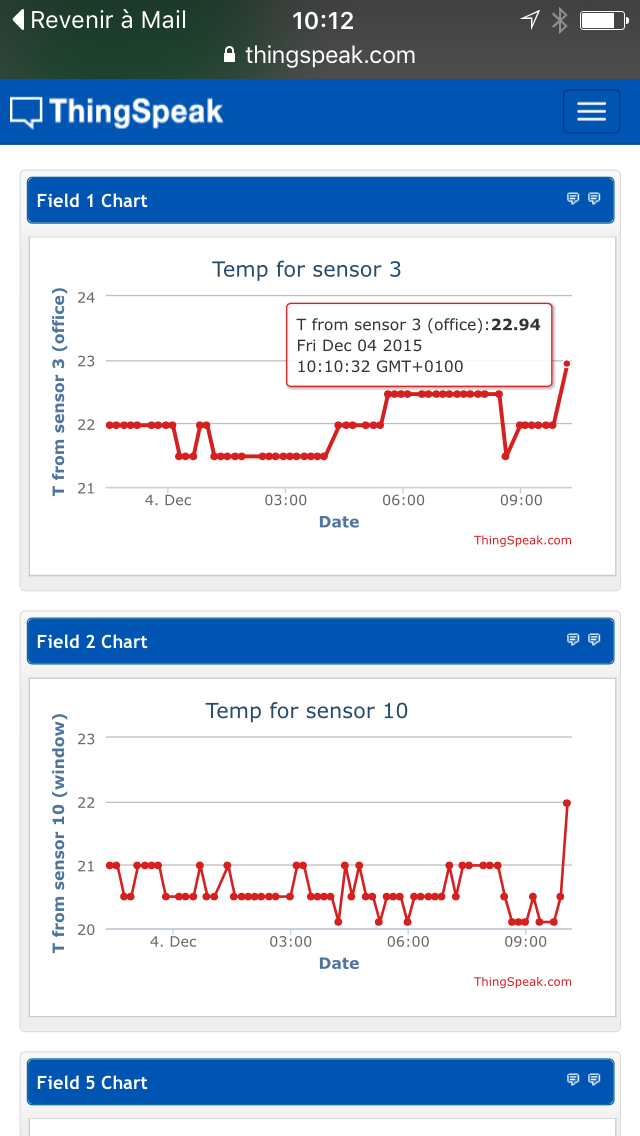

Here are screenshoots from a smartphone:

Figure: real time data displayed on ThingSpeak

Other cloud platforms

We also tested with other cloud platforms such as SensorCloud and GroveStreams. As most platforms provides REST API access it is quite easy to add new cloud platform. Again, see the README file on cloud management.

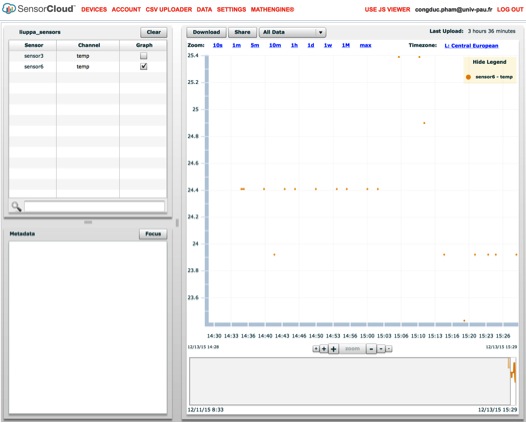

Figure: using SensorCloud

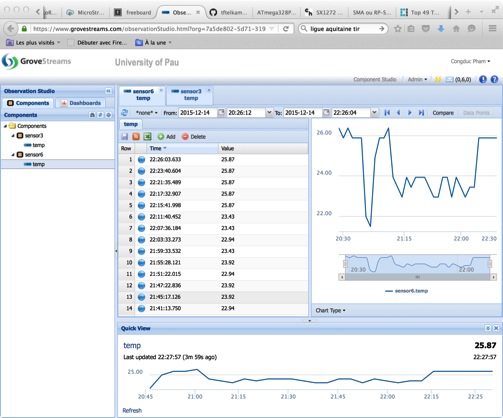

Figure: using GroveStreams

6. Logging all outputs, including post-processing, from the gateway

In order to log all outputs from the gateway, including those from the post-processing stage, we just add another redirection level. We provide a script that simply takes everything from stdout, logs it on Dropbox in a file called post-processing.log and writes again to stdout for display. Example:

 > sudo ./lora_gateway | python ./ | python ./

Here is a sample of such a file from our gateway that collects temperature information from 2 LoRa temperature sensors for our ThingSpeak channel. The ThingSpeak channel write key has been replaced with AAAAAAAAAAAAAAAA. Sensor 3 writes on field 1 and sensor 10 on field 2.

2015-11-20T14:28:36.668501> **********Power ON: state 0
2015-11-20T14:28:36.671743> LoRa mode: 4
2015-11-20T14:28:36.698168> Setting mode: state 0
2015-11-20T14:28:36.741636> Channel CH_10_868: state 0
2015-11-20T14:28:36.800036> Power M: state 0
2015-11-20T14:28:36.813887> Get Preamble Length: state 0
2015-11-20T14:28:36.828750> Preamble Length: 8
2015-11-20T14:28:36.846557> LoRa addr 1 : state 0
2015-11-20T14:28:36.858616> SX1272/76 configured as LR-BS. Waiting RF input for transparent RF-serial bridge
2015-11-20T14:30:21.144953> — rxlora. dst=1 type=0x10 src=3 seq=0 len=11 SNR=4 RSSIpkt=-59
2015-11-20T14:30:21.153355> rcv ctrl pkt info (^p): 1,16,3,0,11,4,-59
2015-11-20T14:30:21.172314> splitted in:  [1, 1, 3, 0, 11, 4, -59]
2015-11-20T14:30:21.189229> (dst=1 type=1 src=3 seq=0 len=11 SNR=4 RSSI=-59)
2015-11-20T14:30:22.206677> rcv msg to log (\!) on ThingSpeak ( default , 1 ): 22.94
2015-11-20T14:30:22.215569> will issue curl cmd
2015-11-20T14:30:22.255881> curl -s -k -X POST –data field1=22.94&field5=0
2015-11-20T14:30:22.271261> returned code from server is 26
2015-11-20T14:30:46.475160> — rxlora. dst=1 type=0x10 src=10 seq=0 len=11 SNR=4 RSSIpkt=-66
2015-11-20T14:30:46.484312> rcv ctrl pkt info (^p): 1,16,10,0,11,4,-66
2015-11-20T14:30:46.501523> splitted in:  [1, 16, 10, 0, 11, 4, -66]
2015-11-20T14:30:46.518002> (dst=1 type=0x10 src=10 seq=0 len=11 SNR=4 RSSI=-66)
2015-11-20T14:30:47.586317> rcv msg to log (\!) on ThingSpeak ( default , 2 ): 24.41
2015-11-20T14:30:47.599120> will issue curl cmd
2015-11-20T14:30:47.612896> curl -s -k -X POST –data field2=24.41&field6=0
2015-11-20T14:30:47.631814> returned code from server is 27
2015-11-20T14:41:10.114686> — rxlora. dst=1 type=0x10 src=3 seq=1 len=11 SNR=5 RSSIpkt=-57
2015-11-20T14:41:10.123342> rcv ctrl pkt info (^p): 1,16,3,1,11,5,-57
2015-11-20T14:41:10.139994> splitted in:  [1, 16, 3, 1, 11, 5, -57]
2015-11-20T14:41:10.157897> (dst=1 type=0x10 src=3 seq=1 len=11 SNR=5 RSSI=-57)
2015-11-20T14:41:11.156688> rcv msg to log (\!) on ThingSpeak ( default , 1 ): 22.46
2015-11-20T14:41:11.165119> will issue curl cmd
2015-11-20T14:41:11.181350> curl -s -k -X POST –data field1=22.46&field5=1
2015-11-20T14:41:11.228312> returned code from server is 28
2015-11-20T14:41:36.516028> — rxlora. dst=1 type=0x10 src=10 seq=1 len=11 SNR=4 RSSIpkt=-68
2015-11-20T14:41:36.525644> rcv ctrl pkt info (^p): 1,16,10,1,11,4,-68
2015-11-20T14:41:36.541918> splitted in:  [1, 16, 10, 1, 11, 4, -68]
2015-11-20T14:41:36.563111> (dst=1 type=0x10 src=10 seq=1 len=11 SNR=4 RSSI=-68)
2015-11-20T14:41:37.544064> rcv msg to log (\!) on ThingSpeak ( default , 2 ): 21.48
2015-11-20T14:41:37.552806> will issue curl cmd
2015-11-20T14:41:37.598217> curl -s -k -X POST –data field2=21.48&field6=1
2015-11-20T14:41:37.605706> returned code from server is 29


7. Tools for testing & build a LoRa gateway for on-the-go tests

We describe here some hints for you want to do some range tests or add&test new functionalities into the post-processing stage.

Use an Arduino-based gateway

As mentioned previously, the lora_gateway code can be compiled and uploaded to an Arduino board (MEGA/Due or TeensyLC/31/32 to have enough RAM memory). If you connect the Arduino gateway to your laptop all outputs will be sent through the serial port.

You can use any serial tool to get data from the Arduino gateway. We use the very convenient serial monitor of the Arduino IDE that allows us to easily send command to the Arduino gateway through the serial port for configuring various LoRa parameters as described previously (when these commands come from serial line, the gateway does not ask for the unlock pin):

/@M1#: set LoRa mode 1
/@C12#: use channel 12 (868MHz)
/@PL/H/M#: set power to Low, High or Max
/@A9#: set node addr to 9

With the gateway connected to the laptop and output displayed by a serial tool, you will see all received frame as in the RPI gateway standalone mode described previously.

Figure: screenshot of the Arduino IDE with the Arduino gateway outputs

If you connect the Arduino gateway and use a python script to forward data from serial port to stdout (see for instance our SerialToStdout python script available in 38400 or 115200 baud versions from our test-bed page) you can have an Arduino-based gateway with full post-processing features (executed on your laptop) provided that your laptop has Internet connectivity. For field tests, I use my smartsphone 3G/4G connection to get Internet access on the laptop. In this way you can have a LoRa gateway on-the-go for your tests.

> python /dev/ttyUSB0 | python ./ | python ./

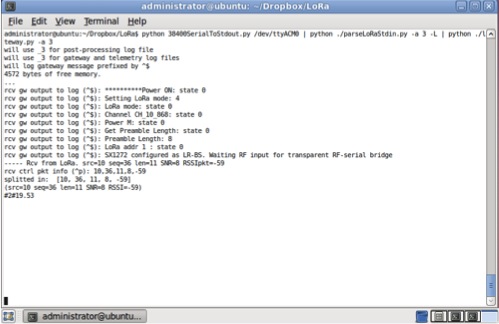

Figure: Arduino gateway with full post-processing features

Use the Raspberry gateway

You can use the DIY Raspberry gateway connected to your laptop as well. In this case, the laptop is use to provide the power and you would simply launch the Raspberry gateway by opening an ssh session. You can just use a cross-over Ethernet cable to connect the Raspberry gateway to you laptop which is supposed to have Internet connectivity for full post-processing features. If your laptop has Dropbox, your Raspberry can have it as well as indicated earlier. For field tests, I use my smartsphone 3G/4G connection to get Internet access on the laptop, then share this connection with the Raspberry.

End-device for sending LoRa messages

We also developped a simple end-device that will allow you with the Arduino IDE to enter ASCII string for transmission to the gateway (by default, the destination address is 1). It waits continuously for input from serial port, then send the message. With this end-device you can dynamically send prefixed messages to test the various post-processing tasks. You can perform range tests when you request an ACK from the gateway. You can send remote control commands to the gateway (by providing the unlock pin) to change its LoRa parameters (be sure to be able to communicate with it again).

In addition, the end-devices accepts the following command for its configuration. We use prefix ‘/@’ to indicate a command packet. The command should be terminated with an ‘#’. Available commands are:

/@M1#: set LoRa mode 1
/@C12#: use channel 12 as defined in the SX1272.h file (868MHz band)
/@PL/H/M/x/X#: set power to Low, High, Max, extreme (PA_BOOST), eXtreme (+20dBm)
/@A9#: set node addr to 9
/@ACK#hello w/ack : sends “hello w/ack” and request an ACK
/@ACKON#: enables ACK (for all messages)
/@ACKOFF#: disables ACK
/@CAD#: performs an SIFS CAD, i.e. 3 or 6 CAD depending on the LoRa mode
/@CADON3#: uses 3 CAD when sending data (normally SIFS is 3 or 6 CAD, DIFS=3SIFS)
/@CADOFF#: disables CAD (IFS) when sending data
/@RSSI#: toggles checking of RSSI before transmission and after CAD
/@EIFS#: toggles for extended IFS wait
/@T5000#: send a message at regular time interval of 5000ms. Use /@T0# to disable periodic sending
/@TR5000#: send a message at random time interval between [2000, 5000]ms.
/@Z200#: sets the packet payload size to 200 for periodic sending
/@S50#: sends a 50B user payload packet filled with ‘#’. The real size is 55B with the Libelium header
/@D56#: set the destination node to be 56, this is permanent, until the next D command
/@D58#hello: send “hello” to node 56, destination addr is only for this message
/@D1#/@M1#: send the command string “/@M1#” to node 1 (i.e. gateway), this would make the gateway to switch to mode 1

For instance, if you want to test the ThingSpeak features with the provided test channel, you can use the end-device to send “\!SGSH52UGPVAUYG3S#1#21.6”. If you want to request an ACK from the gateway, you can use “/@ACK#\!SGSH52UGPVAUYG3S#1#21.6”.

You can use this interactive end-device to perform range tests with various LoRa modes. For instance you can request an ACK in order to verify that the gateway is correctly receiving your message:

/@ACK#hello w/ack

If the message has been correctly received, you can test again with an other LoRa mode to see if connectivity is still maintained:

/@ACK#hello w/ack

The first command asks the gateway to switch to LoRa mode 2 and request an ACK to be sure that the command has been correctly received. Then the end-device switchs itself to LoRa mode 2 and finally sends the message by requesting an ACK. Don’t forget to unlock the gateway in order to be able to remotely configure the gateway. To do this, issue command /@ACK#/@U1234# prior to the /@ACK#/@M2# message.

When requesting an ack from the gateway, the end-device will receive both the SNR of the packet received at the gateway (carried by the ACK) and the SNR of the received ACK. In this way, you can know the quality of the link. The first SNR is 7dB and it is the SNR of the packet received at the gateway, sent by by the gateway in the ACK packet. Then the second SNR (6dB) is the SNR of the received ACK at the end-device.

Rcv serial: /@ACK#hello
^$Parsing command
Sending. Length is 5
Payload size is 5
ToA is w/5B Libelium header 281
Packet number 0
wait for ACK
Starting ‘getACK’
## ACK received:
Destination: 6
Source: 1
ACK number: 0
ACK length: 2
ACK payload: 0
ACK SNR of rcv pkt at gw: 7
##— rxlora ACK. SNR=6 RSSIpkt=-16
LoRa (ACK) Sent in 1586
LoRa Sent w/CAD in 1586
Packet sent, state 0

Locally test&debug post-processing stage

You can write a test text file (test.txt) containing lines similar to :








and then issue the following command:

> cat test.txt | python ./

8. Using Application key to filter out messages

At the end-device level an additional application key can be used as prefix to all messages sent by the device. We chose the solution to let the end-device, thus the application owner, to insert before the real application payload the application key (but from the library perspective, it belongs to the payload data. The gateway’s behavior therefore remains unchanged and the application key will be passed as regular data to the post-processing stage. You can see the LoRa temperature example provided in download to see how application key is implemented. The current application key is coded on 4 bytes. will then check whether the packet type is 0x12 (that indicates a DATA packet and the with_appkey flag)  to read the application key and find whether the key is a registered application key or not (the list of valid application key is defined in and should match with the application key defined at end-devices).

Here is the post-processing output with application key enabled:

2015-11-30T13:02:39.286530> — rxlora. dst=1 type=0x12 src=6 seq=136 len=17 SNR=9 RSSIpkt=-56
2015-11-30T13:02:39.291314> rcv ctrl pkt info (^p): 1,18,6,136,17,9,-56
2015-11-30T13:02:39.295361> splitted in:  [1, 18, 6, 136, 17, 9, -56]
2015-11-30T13:02:39.299561> (dst=1 type=0x12 src=6 seq=136 len=17 SNR=9 RSSI=-56)
2015-11-30T13:02:39.304258> got first framing byte
2015-11-30T13:02:39.312637> –> got app key sequence
2015-11-30T13:02:39.316382> app key is: [5, 6, 7, 8]
2015-11-30T13:02:39.320188> in app key list
2015-11-30T13:02:39.333956> valid app key: accept data
2015-11-30T13:02:39.857162> rcv msg to log (\!) on ThingSpeak ( default , 3 ): 20.99
2015-11-30T13:02:39.861032> ThingSpeak: will issue curl cmd
2015-11-30T13:02:39.864619> curl -s -k -X POST –data field3=20.99&field7=136
2015-11-30T13:02:39.868063> ThingSpeak: returned code from server is 2490

Without application key enforcement, will process all LoRa data prefixed by correct logging prefix (i.e ‘\$’, ‘\!’). With application key, all LoRa data will need a valid application key otherwise the data will be discarded as shown below:

2015-11-30T13:02:39.286530> — rxlora. dst=1 type=0x12 src=6 seq=136 len=17 SNR=9 RSSIpkt=-56
2015-11-30T13:02:39.291314> rcv ctrl pkt info (^p): 1, 18, 6,136,17,9,-56
2015-11-30T13:02:39.295361> splitted in:  [1, 18, 6, 136, 17, 9, -56]
2015-11-30T13:02:39.299561> (dst=1 type=0x12 src=6 seq=136 len=17 SNR=9 RSSI=-56)
2015-11-30T13:02:39.304258> got first framing byte
2015-11-30T13:02:39.312637> –> got app key sequence
2015-11-30T13:02:39.316382> app key is: [9, 10, 11, 12]
2015-11-30T13:02:39.320188> not in app key list
2015-11-30T13:02:39.333956> invalid app key: discard data


10. Additional links

Other works that we are doing

  • Our image sensor with a LoRa radio for getting images from remote places for situation-awareness or surveillance applications
  • Our papers on low-cost LoRa framework and activity time sharing for handling emergency situation and providing QoS guarantees with LoRa
    • C. Pham, “QoS for Long-Range Wireless Sensors under Duty-Cycle Regulations with Shared Activity Time Usage”. ACM Transactions on Sensor Networks (TOSN), Volume 12 Issue 4, September 2016.
    • C. Pham, A. Rahim, P. Cousin, “Low-cost, Long-range Open IoT for Smarter Rural African Villages“. Proceedings of the IEEE International Smart Cities Conference (ISC2), Trento, Italy, Sep. 12-15, 2016.
    • C. Pham, “Building low-cost gateways and devices for open LoRa IoT test-beds“. Proceedings of the 11th EAI International Conference on Testbeds and Research Infrastructures for the Development of Networks & Communities (TridentCom’2016) , Hangzhou, China, June 13-15, 2016.
    • C. Pham, “Deploying a Pool of Long-Range Wireless Image Sensor with Shared Activity Time”. Proceedings of the 11th IEEE International Conference on Wireless and Mobile Computing, Networking and Communications (WiMob’2015), October 19-21, 2015, Abu Dhabi, UAE.

Other DIY LoRa gateway initiatives

  1. A LoRaWAN gateway based on Raspberry and Multitech mCard from Nestor Ayuso
  2. A LoRaWAN gateway based on Raspberry and IMST IC880a board
  3. A LoRaWAN gateway based on Raspberry and a LinkLab LoRaWAN shield
  4. A proof-of-concept single channel LoRa gateway with SX1272/1276
  5. An early Raspberry LoRa gateway developped by Dave Akerman for High Altitude Ballooning

LoRa and python

  1. A python library to drive a LoRa radio module: Raspberry and inAir9
    This can be used to make the script running on the gateway able to send information back to end-devices
  2. A kickstarter project for multi-radio node and gateway: LoPy

Other community based IoT LoRa initiatives

  1. TheThingNetwork

LoRa radios

  1. LoRa modulation

11. Some words about LoRaWAN (gateway and end-device)

The gateway is not LoRaWAN compatible. It is not it’s purpose. A real LoRaWAN gateway should be multi-channel to strictly follow the specification. However, we believe LoRaWAN is not necessary for everybody and might even be not adapted for small to medium scale deployment, where tight control on the deployed infrastructure is preferable.

However, some LoRaWAN features can be added if one wants to do so. If you want a quick explaination of LoRaWAN, there is this nice and simple tutorial (and also how to set a LoRaWAN network server) and this one from LinkLabs. Actually, there are some DIY “single-channel” gateways that do have some LoRaWAN features such as:

  1. the aforementioned single channel LoRa gateway by Thomas Telkamp: A nice discussion on this topic is available on TheThinkNetwork forum:

Our gateway can be configured to work on one of the LoRaWAN channel (i.e. 868.1MHz with BW=125kHz, CR=4/5 and SF=7) by using so-called mode 11:

> sudo ./lora_gateway –mode 11

You can add other modes if needed however in its current stage of development it will have very limited interest as the LoRaWAN packet format is not supported. Future development might include an option to support LoRaWAN packet format, at least so-called “unconfirmed data up”.

You can launch the gateway with complete settings as follows (identical to the so-called mode 11):

> sudo ./lora_gateway –bw 125 –cr 5 –sf 7 –freq 868.1

Then you can build LoRaWAN end-devices by either using one of the LoRaWAN implementations that exists (LMIC and LoRaMAC-Node) with a simple LoRa module plugged in a board. Again, Thomas Telkamp has a great port of LMIC for Arduino. Or you can use a radio module that already has an implementation of LoRaWAN. In most cases, you will be able to issue commands to the radio module for realizing LoRaWAN operations. Check this page from TheThingNetwork for a nice summary of LoRa/LoRaWAN hardware:

I also want to mention a very light implementation of LoRaWAN that was originally intented for the Ideetron Nexus board (ATmega328P and RFM95W) but that compile straight away on most of Arduino boards with the RFM95W module connected accordingly (it uses DIO0 for RxDone, DIO1 for Timeout and DIO5 for Ready). It is worth looking at it if you want to start understanding a bit the basic of LoRaWAN: by Gerben den Hartog. The AES implementation is quite lightweight and I’ve tested the code on both an Arduino MEGA2560 and an Arduino Pro Mini. Of company, only a minimum support of LoRaWAN is provided but it is a nice starting point. Matthijs Kooijman merged the LMIC port of Thomas Telkamp with the lightweight AES library of Gerben den Hartog to propose and LMIC lightweight LMIC port. Maarten Westenberg also contributed in some way for a more lighweight LoRaWAN stack with support of the ESP8266. Here are pictures of some of our LoRaWAN tests using HopeRF RFM95W.

Using the single channel packet forwarder by Thomas Telkamp and the LMIC port by Matthijs Kooijman Dragino has that nice wiki page for their LoRa/GPS Hat shield to build both end-devices and gateway that have small LoRaWAN support (of company you can alway use a simple radio module and just connect the required SPI and DIO pins). We actually have a test single channel packet forwarder (running at 865.2MHz and BW125SF12, so equivalent to the so-called LoRa mode 1) that is registered on TheThingNetwork. Status messages have been tested but it is most of the time not running right now. I also want to mention this great and nice project for a simple open-source private LoRaWAN network server by Orne Brocaar.

Perspective: we may like to add some LoRaWAN-like features to our gateway. For instance, based on the example from RFM95W_Nexus (LoRaWAN_V31/LoRaMAC_V11.cpp) it is not very difficult for an end-device to forge an encrypted LoRaWAN packet that can be received by a gateway (our low-cost gateway with or the single channel packet forwarder from Thomas Telkamp or a LoRaWAN gateway) that will then push encrypted data to a network server. There are also many hybrid solutions that can be tested. For instance, use raw LoRa between end-device and a non LoRaWAN gateway (such as our low-cost gateway), then perform LoRaWAN wrapping at a higher layer (e.g. to upload to a LoRaWAN network server (e.g. TheThingNetwork). Everything is possible!

12. Some additional pictures


C. Pham

Some deployments

University Gaston Berger, Saint-Louis, SenegalThe gateway will be used to deploy low-cost IoT solutions in the context of the H2020 WAZIUP project.
Easy Global Market, Nice, FranceThe gateway will be used to deploy LoRa service for various demonstration purposes
As part of the WAZIUP project, a starter kit with a gateway will be deployed at project’s partner’s site:1- Farmerline (Ghana)
2- iSpace (Ghana)
3- CTIC (Senegal)
IIDRE SASThe gateway will be used to deploy LoRa service for various demonstration purposes
Connecting NatureThe gateway will be used to deploy and test LoRa-based telemetry services for various agriculture applications
Chuck Swiger from West Virginia (US)…

has a ds18b20 temp probe ThinkSpeak channel using our gateway
The Oceanographic Observatory of Banuyls/mer (part of University of Paris 6)The gateway will be used to deploy and test LoRa-based telemetry services for various environmental surveillance applications
Matthew Way from New ZelandDevelops great LoRa-based pest surveillance system (EcoNode). He is testing our solution as well as his own custom design solutions.
NestléSoil moisture will be deployed in Pakistan for maize crop. Objective is to optimize water consumption.

Author: C. Pham, LIUPPA laboratory, University of Pau, France.

last update: April 2nd, 2017.

Follow this link for building end-devices

Get the step-by-step tutorial on how to build the low-cost LoRa gateway
